Double Long (PDL) Series Lift Tables

5000# to 12000# – 24″ to 36″ travel
Platforms 74″ – 192″ long

10 Year/250,000 Cycle Warranty

The P-Series lifts are our most popular hydraulic lift unit series as they fit a wide array of manufacturing applications. Double Wide Scissor Lift units offer wider platform widths. Ask about these heavy-duty scissor lift platforms today.

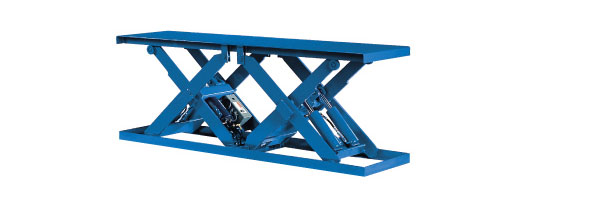

1A3C3A-DLONG-A_W

SPECIAL FEATURES

These hydraulic lift units are equipped with the patented “Platform Centering Devices”, which doubles or triples lift life.
All of the controllers are Underwriter Laboratory listed assemblies.
These units are fully primed and finished with a baked enamel finish.
The cylinders are machine grade with clear plastic return lines.
All pressure hoses are double wire braid with JIC fittings.
The reservoirs are mild steel.
These hydraulic lift units conform to all applicable ANSI codes.

FEATURE DETAILS

Recessed Dock Lifts (Disappearing Docks)

Double Scissor Long (PDL) Series Lift Tables

SPECIFICATION TABLE FOR DOUBLE LONG UNITS

Model	Travel	Capacity	Std Min Platform	Opt. Max. Platform	Maximum End	Loading Side	Baseframe Size	Lowered Height	Raised Height	Speed Sec.	Motor H.P.	Ship Wt.
LENGTH 74″-98″
PDL-5024	24	5000	24 X 74	48 X 98	2500	5000	24 X 74	6-1/2	30-1/2	20	1-1/2	1000
PDL-8024	24	8000	24 X 74	48 X 98	4000	6000	24 X 74	6-1/2	30-1/2	30	1-1/2	1100
PDL-12024	24	12000	24 X 74	48 X 98	4200	7600	24 X 74	6-1/2	30-1/2	44	1-1/2	1120
PEWDL-5024	24	5000	36 X 74	60 X 98	2500	5000	36 X 74	6-1/2	30-1/2	22	1-1/2	1300
PEWDL-8024	24	8000	36 X 74	60 X 98	4000	6200	36 X 74	6-1/2	30-1/2	32	1-1/2	1400
PEWDL-12024	24	12000	36 X 74	60 X 98	4300	8000	36 X 74	6-1/2	30-1/2	46	1-1/2	1420
PVWDL-4024	24	4000	48 X 74	72 X 98	2000	4000	48 X 74	6-1/2	30-1/2	24	1-1/2	1500
PVWDL-8024	24	8000	48 X 74	72 X 98	4000	6400	48 X 74	6-1/2	30-1/2	32	1-1/2	1600
PVWDL-12024	24	12000	48 X 74	72 X 98	4300	8000	48 X 74	6-1/2	30-1/2	46	1-1/2	1630
LENGTH 84″-108″
PEDL-5024	24	5000	24 X 84	48 X 108	2500	5000	24 X 84	6-1/2	30-1/2	20	1-1/2	1070
PEDL-8024	24	8000	24 X 84	48 X 108	4000	6000	24 X 84	6-1/2	30-1/2	30	1-1/2	1170
PEDL-12024	24	12000	24 X 84	48 X 108	4200	7400	24 X 84	6-1/2	30-1/2	44	1-1/2	1190
PEWEDL-5024	24	5000	36 X 84	60 X 108	2500	5000	36 X 84	6-1/2	30-1/2	22	1-1/2	1390
PEWEDL-8024	24	8000	36 X 84	60 X 108	4000	6200	36 X 84	6-1/2	30-1/2	32	1-1/2	1490
PEWEDL-12024	24	12000	36 X 84	60 X 108	4300	7800	36 X 84	6-1/2	30-1/2	46	1-1/2	1510
PVWEDL-4024	24	4000	48 X 84	72 X 108	2000	4000	48 X 84	6-1/2	30-1/2	24	1-1/2	1600
PVWEDL-8024	24	8000	48 X 84	72 X 108	4000	6200	48 X 84	6-1/2	30-1/2	32	1-1/2	1700
PVWEDL-12024	24	12000	48 X 84	72 X 108	4300	8000	48 X 84	6-1/2	30-1/2	46	1-1/2	1730
LENGTH 108″-144″
PVDL-5024	24	5000	24 X 108	48 X 144	2500	5000	24 X 108	6-1/2	30-1/2	20	1-1/2	1150
PVDL-8024	24	8000	24 X 108	48 X 144	4000	6000	24 X 108	7	31	30	1-1/2	1310
PVDL-12024	24	12000	24 X 108	48 X 144	4200	7400	24 X 108	7-1/2	31-1/2	44	1-1/2	1330
PEWVDL-5024	24	5000	36 X 108	60 X 144	2500	5000	36 X 108	6-1/2	30-1/2	22	1-1/2	1700
PEWVDL-8024	24	8000	36 X 108	60 X 144	4000	6200	36 X 108	7	31	32	1-1/2	1830
PEWVDL-12024	24	12000	36 X 108	60 X 144	4300	7800	36 X 108	7-1/2	31-1/2	46	1-1/2	1920
PVWVDL-4024	24	4000	48 X 108	72 X 144	2000	4000	48 X 108	6-1/2	30-1/2	24	1-1/2	1940
PVWVDL-8024	24	8000	48 X 108	72 X 144	4000	6200	48 X 108	7	31	32	1-1/2	2070
PVWVDL-12024	24	12000	48 X 108	72 X 144	4300	7800	48 X 108	7-1/2	31-1/2	46	1-1/2	2160
LENGTH 98″-122″
PDL-5036	36	5000	24 X 98	48 X 122	2500	5000	24 X 98	6-1/2	42-1/2	22	2	1200
PDL-8036	36	8000	24 X 98	48 X 122	3300	5800	24 X 98	6-1/2	42-1/2	34	2	1320
PDL-12036	36	12000	24 X 98	48 X 122	4100	7000	24 X 98	6-1/2	42-1/2	46	2	1380
PEWDL-5036	36	5000	36 X 98	60 X 122	2500	5000	36 X 98	6-1/2	42-1/2	24	2	1550
PEWDL-8036	36	8000	36 X 98	60 X 122	3300	6000	36 X 98	6-1/2	42-1/2	36	2	1650
PEWDL-12036	36	12000	36 X 98	60 X 122	4300	7400	36 X 98	6-1/2	42-1/2	48	2	1710
PVWDL-4036	36	4000	48 X 98	72 X 122	2000	4000	48 X 98	6-1/2	42-1/2	24	2	1760
PVWDL-8036	36	8000	48 X 98	72 X 122	3300	6200	48 X 98	6-1/2	42-1/2	36	2	1860
PVWDL-12036	36	12000	48 X 98	72 X 122	4300	7400	48 X 98	6-1/2	42-1/2	48	2	1910
LENGTH 120″-144″
PEDL-5036	36	5000	24 X 120	48 X 144	2500	5000	24 X 120	6-1/2	42-1/2	22	2	1350
PEDL-8036	36	8000	24 X 120	48 X 144	3300	5800	24 X 120	6-1/2	42-1/2	34	2	1400
PEDL-12036	36	12000	24 X 120	48 X 144	4100	7000	24 X 120	7	43	46	2	1500
PEWEDL-5036	36	5000	36 X 120	60 X 144	2500	5000	36 X 120	6-1/2	42-1/2	24	2	1650
PEWEDL-8036	36	8000	36 X 120	60 X 144	3300	6000	36 X 120	6-1/2	42-1/2	36	2	1750
PEWEDL-12036	36	12000	36 X 120	60 X 144	4300	7400	36 X 120	7	43	48	2	1850
PVWEDL-4036	36	4000	48 X 120	72 X 144	2000	4000	48 X 120	6-1/2	42-1/2	24	2	1880
PVWEDL-8036	36	8000	48 X 120	72 X 144	3300	6200	48 X 120	6-1/2	42-1/2	36	2	1980
PVWEDL-12036	36	12000	48 X 120	72 X 144	4300	7400	48 X 120	7	43	48	2	2070
LENGTH 144″-192″
PVDL-5036	36	5000	24 X 144	48 X 192	2500	4800	24 X 144	6-1/2	42-1/2	22	2	1450
PVDL-8036	36	8000	24 X 144	48 X 192	3300	5800	24 X 144	7-1/2	43-1/2	34	2	1580
PVDL-12036	36	12000	24 X 144	48 X 192	4100	7000	24 X 144	8	44	46	2	1680
PEWVDL-5036	36	5000	36 X 144	60 X 192	2500	5000	36 X 144	6-1/2	42-1/2	24	2	1770
PEWVDL-8036	36	8000	36 X 144	60 X 192	3200	6000	36 X 144	7-1/2	43-1/2	36	2	1950
PEWVDL-12036	36	12000	36 X 144	60 X 192	3900	7200	36 X 144	8	44	48	2	2050
PVWVDL-4036	36	4000	48 X 144	72 X 192	2000	4000	48 X 144	6-1/2	42-1/2	24	2	2020
PVWVDL-8036	36	8000	48 X 144	72 X 192	3200	6000	48 X 144	7-1/2	43-1/2	36	2	2210
PVWVDL-12036	36	12000	48 X 144	72 X 192	3900	7400	48 X 144	8	44	48	2	2300

* CLICK ON THE MODEL NUMBER IN THE CHART TO VIEW PRODUCT SHEET

*Base frame length may vary on longer platforms.

ONLY ADVANCE LIFTS GIVES YOU WARRANTY CHOICES:

P SERIES LIFTS – 10 YEAR/250,000 CYCLES
(The longest standard warranty in the industry)
HC SERIES LIFTS – 10 YEAR/1,000,000 CYCLES
UHC SERIES LIFTS – 10 YEAR/3,000,000 CYCLES

Call the number below with any questions you have about these long industrial hydraulic lift units.

5000# to 12000# – 24″ to 36″ travel Platforms 74″ – 192″ long
