Carousel & Order Picking Lifts

WHEN DURABILITY MATTERS

1 Year Parts and Labor\10 year, 250,000 Cycle Structural Warranty

The carousel and order picker lifts evolved from standard units to specialized units designed for order picking operations. Their chief features include handrail and gate configurations on three (3) sides and in some instances they have modified platform outlines. The stock picker lifts below are the most common configurations ordered, but custom layouts are not unusual. High-quality and built-to-last, these industrial lifts are suitable for a range of applications. Browse below and view our carousel and order picker lifts for sale.

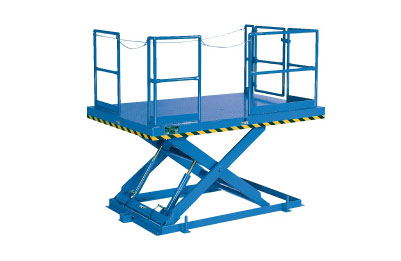

1A3F1-CAROUSEL-LIFTS_W

SPECIAL FEATURES

  • These order picker platforms are equipped with the patented “Platform Centering Devices”, which doubles or triples lift life.
  • All of the controllers are Underwriter Laboratory listed assemblies.
  • These units are equipped with remote power units mounted on mild steel reservoirs.
  • These units are fully primed and finished with a baked enamel finish.
  • All pressure hoses are double wire braid with JIC fittings.
  • These industrial carousel lifts conform to all applicable ANSI codes.
"Big Friggin" (BFL) Series Lift Tables
Carousel & Order Picking Lifts
Multi Stage (MSL) Series Lift Tables
Recessed Dock Lifts (Disappearing Docks)

STANDARD MODELS & CONFIGURATIONS

Carousel & Order Picking Lifts
ModelTravelCapacityStd Min PlatformOpt. Max. PlatformLowered HeightRaised HeightSpeed Sec.Motor H.P.Ship Wt.
CNC-206060200048 X 9696 X 14410702052100
CNC-207272200048 X 10296 X 1688802452700

A = 48″-96″, B = 96″-144″ or 102″-168″

*CLICK ON THE MODEL NUMBER IN THE CHART TO VIEW PRODUCT SHEET

Carousel & Order Picking Lifts
ModelTravelCapacityStd Min PlatformOpt. Max. PlatformLowered HeightRaised HeightSpeed Sec.Motor H.P.Ship Wt.
CFC-206060200048 X 9696 X 14410702052100
CFC-207272200048 X 10296 X 1688802452700

A = No less than 48″, B = 96″-144″ or 102″-168″, A + C = No greater than 96″,
C = No greater than A/4

*CLICK ON THE MODEL NUMBER IN THE CHART TO VIEW PRODUCT SHEET

Carousel & Order Picking Lifts
ModelTravelCapacityStd Min PlatformOpt. Max. PlatformLowered HeightRaised HeightSpeed Sec.Motor H.P.Ship Wt.
CPC-206060200048 X 9696 X 14410702052100
CPC-207272200048 X 10296 X 1688802452700

A = No less than 48″, B = 96″-144″ or 102″-168″, A + C = No greater than 96″,
C = No greater than A/4

*CLICK ON THE MODEL NUMBER IN THE CHART TO VIEW PRODUCT SHEET



Carousel and order picker lifts are designed with off center load limits of: 1/2 of total capacity on 1/2 of the platform.
This is more than adequate for typical order picking applications.
