2 Year Parts & Labor/10 Year Structural Warranty

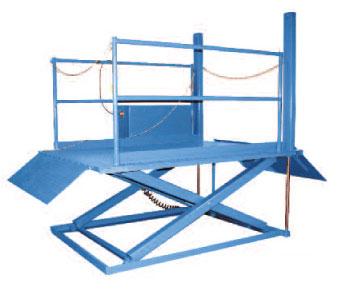

These are Instant Docks that simply require lagging into position and plugging into a power receptacle and they are ready to go to work. No pit work is required.
Axle Capacity Ends: 6,400 lbs.
Platform Size: 6 x 10 ft.
Overall Size w/Ramp: 86 x 180 in.
Lowered Height: 6 in.
Bridge Size: 18 x 60 in.
Ramp Size: 42 x 60 in.
5 HP Motor
Approx. 11 FPM
Shipping Weight: 4,590 lbs.
SPECIAL FEATURES & BENEFITS
- All models are equipped with a hinged bridge equipped with a pull back chain.
- All models have a combination approach ramp.
- All of the electrical controllers are Underwriters Laboratories approved assemblies.
- Each unit is washed with phosphoric acid, fully primed and then finished with baked enamel.
- All cylinders are machine grade with clear plastic return lines.
- All pressure hoses are double wire braid with JIC fittings.
- These units conform to all applicable ANSI codes
