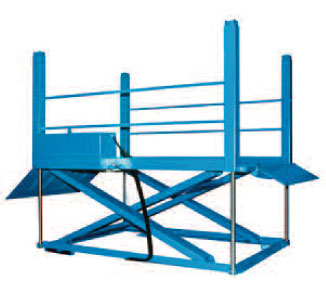

MODEL 610712 TOP OF GROUND DOCK LIFT

2 Year Parts & Labor/10 Year Structural Warranty



These are Instant Docks that simply require lagging into position and plugging into a power receptacle and they are ready to go to work. No pit work is required.

Advance Advantages ISOAdvance AdvantagesAdvance Advantages Made in USA
Capacity: 10,000 lbs.
Axle Capacity Ends: 8,000 lbs.
Platform Size: 7 x 12 ft.
Overall Size w/Ramp: 98 x 204 in.
Lowered Height: 6 in.
Bridge Size: 18 x 66 in.
Ramp Size: 42 x 72 in.
7.5 HP Motor
Approx. 10 FPM
54″ Travel
Shipping Weight: 5,570 lbs.
610712_TOG_PrdSht1Model# 610712

SPECIAL FEATURES & BENEFITS

  • All models are equipped with a hinged bridge equipped with a pull back chain.
  • All models have a combination approach ramp.
  • All of the electrical controllers are Underwriters Laboratories approved assemblies.
  • Each unit is washed with phosphoric acid, fully primed and then finished with baked enamel.
  • All cylinders are machine grade with clear plastic return lines.
  • All pressure hoses are double wire braid with JIC fittings.
  • These units conform to all applicable ANSI codes
