2 Year Parts & Labor/10 Year Structural Warranty

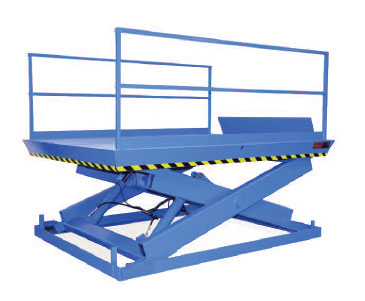

These are our heavy sized Disappearing Dock lifts. They are sized to handle pallet jacks, powered pallet jacks, straddle stackers and small fork trucks. They are also used for dock to ground access.
Axle Capacity Ends: 12,800 lbs.
Axle Capacity Sides: 11,200 ft.
Platform Size: 7 x 12 ft.
Lowered Height: 16-1/4 in.
7-1/2 HP Motor
Approx. 10 FPM
Shipping Weight: 6,600 lbs.
SPECIAL FEATURES & BENEFITS
- All models are equipped with a hinged bridge with a pull back chain.
- All of the electrical controllers are Underwriters Laboratories approved assemblies.
- Each unit is washed with phosphoric acid, fully primed and then finished with baked enamel.
- All cylinders are machine grade with clear plastic return lines & internal mechanical stops.
- These units conform to all applicable ANSI codes.
