MODEL 3480 RECESSED DOCK LIFT

2 Year Parts & Labor/10 Year Structural Warranty



These are our medium sized Disappearing Dock lifts. They are sized to handle pallet jacks, powered pallet jacks, straddle stackers and small fork trucks. They are also used for dock to ground access.



Advance Advantages ISOAdvance AdvantagesAdvance Advantages Made in USA
Capacity: 12,000 lbs.
Axle Capacity Ends: 9,600 lbs.
Axle Capacity Sides: 8,400 lbs.
Platform Size: 8 x 12 ft.
Lowered Height: 15 in.
5 HP Motor
Approx. 7 FPM
58″ Travel
Shipping Weight: 6,900 lbs.

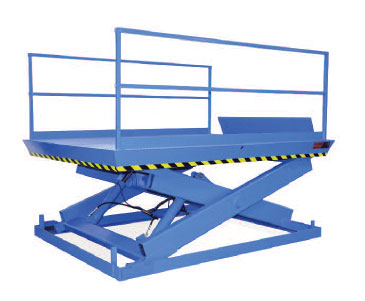

3480_RDL_PrdSht1Model# 3480

SPECIAL FEATURES & BENEFITS

  • All models are equipped with a hinged bridge with a pull back chain.
  • All of the electrical controllers are Underwriters Laboratories approved assemblies.
  • Each unit is washed with phosphoric acid, fully primed and then finished with baked enamel.
  • All cylinders are machine grade with clear plastic return lines & internal mechanical stops.
  • These units conform to all applicable ANSI codes.
