2 Year Parts & Labor/10 Year Structural Warranty

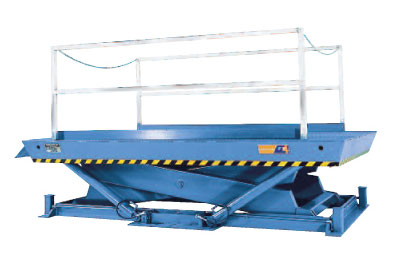

These are our largest sized Disappearing Dock lifts. They are sized to handle any mobile material handling equipment you may have. They also provide dock to ground access.
Axle Capacity Ends: 16,000 lbs.
Axle Capacity Sides: 14,000 lbs.
Platform Size: 7 x 12 ft.
Lowered Height: 20 in.
7.5 HP Motor
Approx. 8 FPM
Shipping Weight: 7,400 lbs.
SPECIAL FEATURES & BENEFITS
- Cylinders are mounted directly to platform corners to eliminate platform deflection during load transfer.
- All models are equipped with a hinged bridge with a pull back chain.
- All of the electrical controllers are Underwriters Laboratories approved assemblies.
- Each unit is washed with phosphoric acid, fully primed and then finished with baked enamel.
- All cylinders are machine grade with clear plastic return lines & internal mechanical stops.
- These units conform to all applicable ANSI codes.
